Plus sewing machine

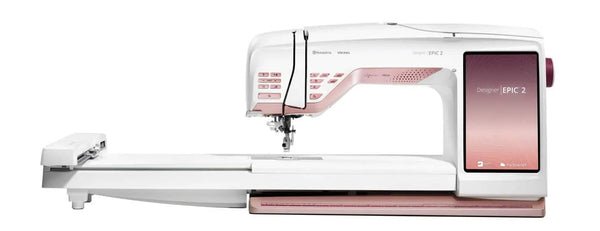

The HUSQVARNA® VIKING® DESIGNER EPIC™ 2 sewing and embroidery machine continues to lead the sewing and embroidery machine industry with innovation and world-class features!

Dimensions

Weight

33lbs.

Foot Control Cord Length

8'2"

Maximum Embroidery Area

14.17" x 13.78" (360x350mm)

Screen

10.1"

Working Area ( to the right of needle)

12"

Working Area Height

5.5"

Base Plate Ruler

19"

PERFECT EVEN FEEDING

Simply engage the Integrated Dual Feed technology, and it will feed fabric layers and quilt batting evenly from the top and bottom. Perfect for quilting, stretch fabrics, and any fabric that requires precise pattern matching. The sensor on the DESIGNER EPIC™ 2 machine will prompt you when to engage or disengage Integrated Dual Feed technology based on your fabric type and selected stitch.

LET THE MACHINE GUIDE YOUR WAY

The Adjustable Laser Sewing Guidance feature will quickly become your favorite sewing technology on the DESIGNER EPIC™ 2 sewing and embroidery machine! With the touch of a button, the Adjustable Laser Sewing Guidance is projected onto your fabric to help you align lines of decorative stitches, consistently space lines of quilting, and more – along straight or curved edges. The Adjustable Laser Sewing Guidance feature helps guide your next project while you use the exclusive Laser Pictogram Stitches. You can use the 27 Laser Pictogram Stitches to create a wide variety of combinations and unique medallion designs.

TAKE YOUR SEWING ONE STEP FURTHER

Control multiple functions of your machine, like thread cut or reverse, without taking your hands off your project with the optional Multi-Function Foot Control capability on the DESIGNER EPIC™ 2 machine. This innovative attachment connects to the machine via an extra-long 8’2” (2.5m) USB cord suitable for various sewing positions. Program the three switches to perform one of five functions, to your preference, on the DESIGNER EPIC™ 2 screen.

ONE-OF-A-KIND EMBROIDERIES

Create three-dimensional ribbon embroideries with the innovative, optional Ribbon Embroidery Attachment! The DESIGNER EPIC™ 2 sewing and embroidery machine is the first home embroidery machine in the industry with ribbon embroidery attachment capability!** With the motorized, optional Ribbon Embroidery Attachment, your DESIGNER EPIC™ 2 sewing and embroidery machine will guide and embroider down ribbon in all directions.

Integrated Dual Feed Technology

Feeds fabric from the top with ease when sewing multiple layers of fabric or specialty fabrics, eliminating the need for a separate walking foot. Engage or disengage this feature easily as needed, depending on what you're sewing.

mySewnet™ Library Enabled

The first machine to have access to a full, continuously growing library of high-quality embroidery designs directly on the screen of your DESIGNER EPIC™ 2 machine! Connect to all the mySewnet™ apps you love, update your machine wirelessly, transfer designs between devices, and more.

Adjustable Laser Sewing Guidance

Project a laser guidance line directly on your fabric to easily line up your stitches. Move the laser-projected line guide left or right to easily align rows of decorative stitches, consistently space lines of quilting, and more.

Design Placement through mySewMonitor™ App

Design Placement is now easier than ever! Use your smartphone to take a photo of your hooped project with the HUSQVARNA® VIKING® mySewMonitor™ app. The app communicates with your DESIGNER EPIC™ 2 machine for perfect embroidery design placement faster than ever before.

JoyOS Advisor™ Feature

Your sewing experience is more seamless than ever with interactive tutorials, sewing instructions, step-by-step workbooks, easy-access user's guide, stabilizer guide, quick start guide, accessory guide, and more! Select your fabric type and choose from a wide selection of available sewing techniques. The JoyOS Advisor™ feature will instantly set the best stitch, stitch width, stitch length, thread tension/portioning, and presser foot pressure for the technique you've chosen.

Included Accessories

• A foot for IDF system,
• B foot,
• C foot,
• D foot,
• E foot for IDF system,
• H foot for IDF system,
• J foot for IDF system,
• Adjustable ¼” foot for IDF system,
• R foot,
• S foot,
• Sensor One-Step Buttonhole Foot,
• Sensor Q-Foot,
• Straight Stitch Plate
• DESIGNER™ Imperial Hoop (360x260)
• DESIGNER™ Crown Hoop (260x200)
• DESIGNER™ Splendid Square Hoop (120x120)

SEWING FEATURES

• ADJUSTABLE LASER SEWING GUIDANCE:

  Project a laser guidance line directly on your fabric to easily line up your stitches. Move the laser projected line guide left or right to easily align lines of decorative stitches, consistently space lines of quilting, and more.

• STITCH PACKAGE:

  EXCLUSIVE STITCH TECHNIQUES – Customize any project with exclusive patented stitch techniques that give your project dimensional elements that are effortless and irresistable: Pop-Up Stitches, Sequin Stitches, Appliqué Stitches, Yarn Stitches, Theme Stitches, and Laser Pictogram Sticthes. WIDER DECORATIVE STITCHES (9MM) – Create an impact with 9mm standard width decorative stitches and side-motion stitches (up to 54mm) for any special project.

• EXTENSIVE SELECTION OF BUILT-IN STITCHES

  • Over 840 stitches, up to 54mm wide.
  • Exclusive patented stitch techniques.
  • 6 sewing alphabets, with both uppercase and lowercase letters, for easy programming

• deLuxe™ STITCH SYSTEM

  Less effort spent on machine adjustments with high-quality results regardless of fabric and thread type. Perfect for metallic or other specialty threads. Gorgeous stitch results on both sides of the fabric.
  • THREAD PORTIONING – Feeds the optimum amount of thread for each stitch, no matter the thread type or fabric thickness, when sewing or embroidering.
  • THREAD PORTIONING OR THREAD TENSION – Choose between Thread Portioning or Thread Tension for specific techniques/accessories.

• EXCLUSIVE SENSOR SYSTEM™ FEATURE

  Automatically and continuously senses and adjusts to any fabric thickness for perfect, even feeding as you sew.
  • SENSOR FOOT LIFT: Presser foot lowers and raises automatically for every sewing technique.Four positions: down, pivot, up, and extra lift. Automatically lowers feed teeth on extra lift for maximum space to slide thick fabrics and quilts under the foot easily.
  • SENSOR FOOT PIVOT: Automatic float position with needle down for instant pivoting, easy appliqué and quilting. Your hands are free to guide the fabric.
  • SENSOR FOOT PRESSURE: The presser foot continuously senses the thickness of the fabric and automatically adjusts the presser foot pressure for even feeding on all fabric types.

• THREE FREE-MOTION SETTINGS:

  • Free-motion spring action
  • Free-motion floating
  • Free-motion Ruler Foot

• STITCH POSITIONING:

  Possible to change complete stitch position for any stitch with less than 9mm stitch width

• 37 NEEDLE POSITIONS: Sew a straight stitch in 37 different needle positions for ideally placed topstitching, edge stitching, understitching, stitching-in-the-ditch, or quilting.

• STITCH BALANCE: Automatically sets the ideal feed balance when stitching forwards and backward, so your decorative stitching looks stunning every time.

• PERFECTLY BALANCED BUTTONHOLES:

  The Sensor One-Step Buttonhole Foot automatically sews perfect one-step buttonholes every time. Sew both sides of the buttonhole in the same direction for evenly balanced buttonholes. 16 buttonhole styles and 3 eyelets designed for various sewing applications.

• STRAIGHT STITCH PLATE AND SENSOR:

  Perfect for straight-stitch sewing with any special accessory and embroidery. Attach the Straight Stitch Plate, and the machine sensor alerts you if you select any stitch other than a straight stitch.

• SEWING FUNCTIONS:

  • Needle Up/Down
  • Start/Stop
  • Stop
  • Fix
  • Automatic Thread Cutter
  • Pattern Restart
  • Speed

• TAPERING ON DECORATIVE STITCHES:

  Taper at the beginning and/or at the end of select decorative stitches. Change the taper angle for unlimited creative opportunities.

• FREE-MOTION SEWING WITH DECORATIVE STITCHES:

  Use any non-dimensional decorative stitch up to 9mm wide in free-motion

• RIBBON EMBROIDERY ATTACHMENT CAPABILITY:

  A true innovation in the home embroidery machine! With the optional ribbon embroidery attachment, your DESIGNER EPIC™ 2 sewing and embroidery machine will guide and stitch down ribbon in embroidery mode. Adding ribbon to your embroidery designs has never been easier!

• DESIGN POSITIONING:

  Place and match your embroideries with this feature for accurate stitch placement. Use the Design Positioning feature in the mySewMonitor™ App to see where you want the design on your project, making the Design Positioning process a breeze.

• MOST BUILT-IN SPECIALTY EMBROIDERY TECHNIQUES:

  • Ribbon Embroidery
  • THREAD VELVET™ Technique
  • Cutwork Needles
  • Patchwork in-the-Hoop
  • Free-Standing Lace
  • And More!

• DESIGN SHAPING

  :Create unlimited new embroideries using any stitch and/or embroidery. Choose your shape, then adjust your selected designs or stitches along the shape line.

• DESIGN APPLIQUÉ:

  • Choose from built-in shapes such as: heart, flower, letters and more.
  • Finish your appliqué with different stitch options.

• EMBROIDER BUTTONHOLES AND DECORATIVE STITCHES IN THE HOOP:

  Expand your creativity by combining any of the built-in stitches for endless design opportunities. You can also taper in the hoop to create mitered corners and beautifully angled effects using select decorative stitches.

• AUTOMATIC JUMP STITCH TRIM:

  • Jump stitches are cut automatically, and thread tails are pulled to the back.
  • Automatic thread cutter cuts only the top thread at each color change.

• EMBROIDERY DESIGN CUSTOMIZING:

  • Add multiple designs
  • Rotate, mirror image, scale, move
  • Color edit
  • Group and ungroup designs
  • Undo/redo
  • Change stitch out order
  • Color block sort
  • Color block merge
  • Monochrome

• BASTING OPTIONS:

  Use basting to secure the fabric without hooping. Choose between baste around design or baste around hoop area.

• HIGH EMBROIDERY SPEED:

  Stitch up to 1000 stitches per minute

• WELCOME TO EMBROIDERY STITCH-OUT:

  Check and adjust the embroidery settings before entering Embroidery Stitch-Out.
• THREE EMBROIDERY HOOPS INCLUDED:
  • DESIGNER™ Splendid Square Hoop (120x120mm)
  • DESIGNER™ Crown Hoop (260x200mm)
  • DESIGNER™ Imperial Hoop (360x260mm)

• EMBROIDERY AREA:

  Embroider with the market's largest embroidery area using the optional 360x350mm DESIGNER™ Majestic Hoop.**

• HOOP POSITIONS:

  Move the hoop to four constant positions: Current Stitch, Park, Center, and Trim.

• COMPLIMENTARY COMPUTER SOFTWARE DOWNLOAD:

  Download the free software from husqvarnaviking.com to enhance your embroidery machine. Adding the following features:
  • mySewnet™ CLOUD COMMUNICATION MODULE – Allows you to wirelessly connect the machine to your computer.
  • WINDOWS EXPLORER PLUG-IN – View designs as thumbnail images, read different embroidery file formats, add trim commands, and more.
  • QUICKFONT – Create and add numerous embroidery fonts to your machine using any TrueType font on your computer.

• SEWING PERFORMANCE

  • FABRIC FEEDING – Exceptional fabric feeding is provided by the additional front feed teeth and an overall wider feed teeth system.
  • NEEDLE PIERCING POWER – Electronic needle piercing power provides superior results when using heavy fabrics or multiple layers.

• MACHINE CAPABILITIES

  • LARGE SCREEN – 10.1" capacitive touch tablet-like screen allows you to easily navigate on-screen using touch gestures like swipe, pinch, and spread.
  • LARGE WORKING AREA – More than 12" (310mm) to the right of the needle and the market's tallest working area at over 5.5" (140mm) give plenty of room for large, bulky projects.**
  • LARGE THREAD SPOOL CAPABILITY – Built-in telescopic thread stand allows you to use larger thread spools without additional accessories.
  • LARGE BOBBIN – Sew and embroider for longer periods without interruption

• MULTI-FUNCTION FOOT CONTROL CAPABILITY

  Control multiple functions of your machine like thread cut or reverse without taking your hands off your project (optional accessory).

• USER EXPERIENCE

  • WORK LIGHT – Developed by optronic experts using revolutionary LED technology and light guide optics, the work area lighting on the DESIGNER EPIC™ 2 machine allows you to see stitches in true color with virtually no shadows
  • ERGONOMIC DESIGN – Sew with a comfortable, intuitive machine design.
  • STABILITY – Sew or embroider with less vibration for a steady and quiet sewing experience.

• FULLY AUTOMATIC NEEDLE THREADER

  With one touch of a button, your needle is threaded and ready to sew for hassle-free threading every time.

• PERSONALIZED ON-SCREEN EXPERIENCE

  The redesigned Graphical User Interface is a contemporary, user-friendly experience you can personalize by switching the color scheme to fit your style.

• SMART SAVE

  If you lose power or need to stop embroidering/sewing, it automatically saves all adjustments. You can also choose to manually Smart Save at any time.

• LIGHTWEIGHT, ONE PIECE ALUMINIUM CASTING

  The lightest machine in its class, yet the largest working area.**

• BOBBIN WINDING

  • Through the needle for quick, convenient bobbin winding.
  • Separate bobbin winding motor allows you to wind a bobbin without interrupting your sewing.
