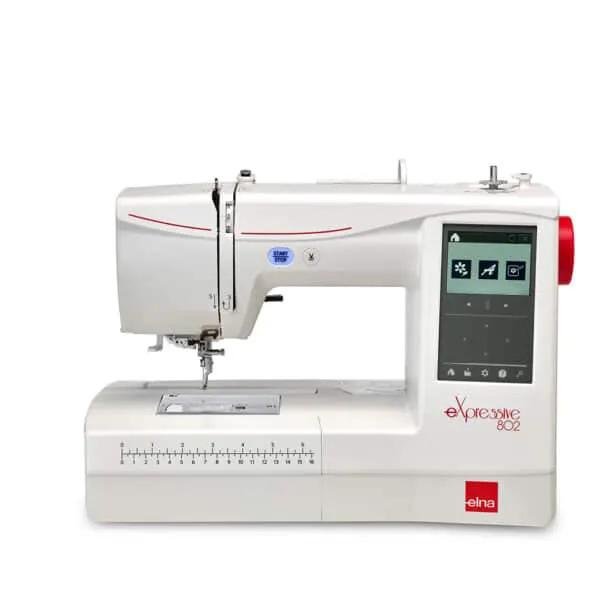

Embroidery is perfect for creating your unique style, both for lending an additional decorative touch to your sewing creations or for customizing existing pieces. The elna eXpressive 802 is the compact embroidery machine that will support you with your new projects.
- Built-in embroidery unit with swing-type arm at the back
- 274 built-in embroidery designs
- Alphabet in 11 fonts
- 140 x 140 mm embroidery size
- Embroidery speed up to 660 stitches per minute
- 3.5” color touch screen + touch panel
- Built-in needle threader
- Automatic and programmable thread cutter
- Bobbin and upper thread sensors
- Extensive design editing functions directly accessible on the machine
- 2.5 MB built-in memory and USB port for design transfer
- EXCLUSIVE: Free-arm embroidery possible with optional hoops
| 808 |
eXpressive 802 |
|
| TECHNICAL | ||
| Machine size | 432 × 301 × 270 mm | 432 × 301 × 270 mm |
| Machine weight | 10 kg | 9.1 kg |
| Embroidery unit | Integrated with swing-type arm | Integrated with swing-type arm |
| Free arm | x | x |
| Sewing space | 180 x 110 mm | 183.5 x 110 mm |
| Screen type (size) | 3.5″ color touch screen + touch panel | 3.5″ color touch screen + touch panel |
| Rotary hook | Horizontal with clear bobbin cover | Horizontal with clear bobbin cover |
| Bobbin winder | Auto declutch | Auto declutch |
| Bobbin threader | Easy and guided system with built-in thread cutter | Easy and guided system with built-in thread cutter |
| Needle threader | Built-in | Built-in |
| Upper thread sensor | x | x |
| Bobbin thread sensor | x | x |
| Thread tension control | Manual | – |
| Feed dog | 7-piece / Retractable | – |
| Drop feed sensor | x | – |
| Presser foot pressure adjustment | Manual | – |
| Extra-high presser foot position | Manual | – |
| Presser foot | Clip-on easy conversion system | – |
| Needle plate | Magnetic easy conversion system | – |
| Lighting | 2 LED lamps in 2 areas | 2 LED lamps in 2 areas |
| Stitch reference chart | Booklet | – |
| Accessory storage | Arm | Arm |
| Built-in memory | 2.5 MB | 2.5 MB |
| USB port | 1 | 1 |
| FUNCTION BUTTONS | ||
| Start / Stop | x | x |
| Reverse sewing | x | – |
| Automatic-lock stitch | x | – |
| Up / Down needle position | With memory function | – |
| Automatic thread cutter | x | x |
| Speed control slider | x | – |
| Stitch / Embroidery pattern selection | Touch screen | Touch screen |
| SEWING | ||
| Number of stitches | 300 | – |
| Maximum stitch width (mm) | 7 mm | – |
| Maximum stitch length (mm) | 5 mm | – |
| Maximum sewing speed | 860 stitches/min. | – |
| One-step buttonholes | 15 one-step (12 sensor) | – |
| Alphabet – Typefaces | 3 | – |
| Pattern combination | Up to 100 stitches | – |
| EMBROIDERY | ||
| Number of embroidery designs | 241 | 274 |
| Embroidery fonts | 11 fonts | 11 fonts |
| Monogramming | 2 and 3 letters | 2 and 3 letters |
| Maximum embroidery area | 140 x 140 mm | 140 x 140 mm |
| Maximum embroidery speed | 660 stitches/min. | 660 stitches/min. |
| Embroidery editing functions | Directly on the machine | Directly on the machine |
| Programmable thread trimming | After jump or color change | After jump or color change |
| Free arm embroidery | Optional hoops | Optional hoops |
Standard accessories
- Embroidery foot P
- Bobbin holder for embroidery
- Embroidery hoop SQ14e (140 x 140 mm)
- Bobbin x4
- Needle set
- Lint brush
- Scissors
- Spool holder small x2
- Spool holder large x2
- Additional spool pin
- Screwdriver
- Touch panel stylus
- EmbroideryEditor software on download
