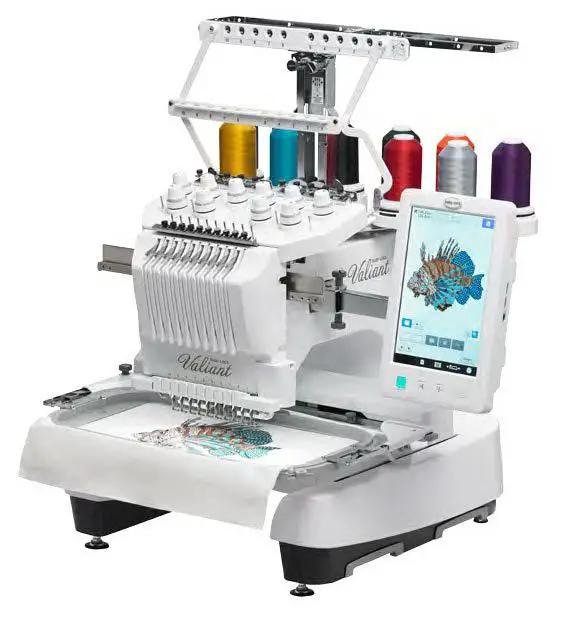

Plus sewing machine

NeedleCam Digital Camera

The NeedleCam™ Digital Camera lets you see from the needle’s point of view, so you know exactly where the needle will drop. Also, you can use the Perfect Positioning stickers included with your Valiant to place every design with extreme precision.

5 LED Lights

The 5 LED lights help illuminate your work area and also come with dimming settings to create your perfect workspace.

Edit Designs On Screen

With the Valiant’s editing features, you can combine, reposition, resize, rotate and mirror embroidery designs and watch as the changes instantly appear on the LCD screen. Alter design elements individually, or group them to easily move or edit them collectively.

LED Spool Stand Lights

The Valiant has many features built-in to help you concentrate on the art of embroidery instead of the mechanics. The 10 LED spool stand lights help keep your thread colors coordinated, and signal when a spool needs to be changed. Plus, the push-button needle threader makes thread changes effortless.

3 USB Drives:

• 2 Type A
• 1 Type B
• SD Card Slot

With USB connectivity, you can easily import designs to your machine from a computer or flash drive.

Front-Loading Bobbin System

The convenient bobbin system with a front-loading, vertical hook means you can change bobbins without having to remove your embroidery hoop.

4 Hoops

The Baby Lock Valiant comes with four embroidery hoops: 7-7/8" x 14" (200mm x 360mm), 5-1/8" x 7-1/8" (130mm x 180mm), 4" x 4" (100mm x 100mm), 1-1/2" x 2-3/8" (40mm x 60mm).

Color Visualizer

Choose from random, vivid, gradient and soft and watch as your design is transformed in an array of color combinations. Have a favorite color in mind? Pin it to the Color Visualizer, and the Valiant will be sure to use it in the next set of color suggestions.

• Touch pen (stylus)
• Accessory Case
• Pre-wound bobbins
• USB cable
• Seam ripper
• Scissors

• Tweezers
• Screwdrivers
• Spool caps
• Oiler
• Cleaning brush
• Embroidery Positioning Stickers

• Embroidery frame holder "A"
• Embroidery frame holder "B"
• Scanning frame and magnets
• 4 Embroidery hoops with grids

120 Built-in Embroidery Designs

Choose from more than 120 built-in embroidery designs then rotate, merge, color sort, group and more all on screen.

Customizing Features

• Built-in embroidery designs
  • 120 Designs
  • 41 Fonts including
  • Baby Lock exclusive script (70 characters)
  • Large floral alphabet (64 characters)
  • Large Block alphabet (61 characters)
  • Greek letters (24 characters)
  • Block alphabet (100 characters)
  • 3 Monogram fonts ( 156 characters) and frame designs (15)
  • 140 Frame combinations
• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• Multi-line text
• Character insert and group edit capabilities
• 0.1°, 1°, 10°, and 90° Pattern rotation
• Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
• Needle forward and reverse position placement (1, 10, 100 or 1000 stitch increments)
• Intuitive forward and reverse placement by touchable progress bar and direct number input
• Design duplication (up to 20 times in both directions)
• Enhanced design grouping /ungrouping allows designs or letters to move as a group
• Color Visualizer with pin-able color selections
• Direct Spool Selection to change color selections within designs
• Continuous border capabilities
• Automatic appliqué
• Automatic basting
• Mirror imaging
• Enhanced color sorting
• Monochrome option for embroidery designs
• Short stitch delete
• Instant needle edge placement with 9 starting and 9 ending positions
• Thread color display in 6 options
• Custom color displays in 3 options:
  • Original Palette, Custom Palette 1, Custom Palette 2
• 4 Included embroidery hoops:
  • 7-7/8" x 14" (200mm x 360mm)
  • 5-1/8" x 7-1/8" (130mm x 180mm)
  • 4" x 4" (100mm x 100mm)
  • 1-1/2" x 2-3/8" (40mm x 60mm)
• Hoop sensor advises hoop size for design chosen
• Hoop display shows hoop options onscreen based on frame holder chosen
• Stitch simulator previews design on screen
• On-screen count and running time system

Customizing Features

• 5 LED lights with dimming settings to illuminate work area
• LED spool stand lighting aids in thread placement and lights for thread spool warning
• Built-in memory (10MB) stores embroidery designs to the machine's memory
• Bobbin system: front loading, vertical rotary hook
• Push button, automatic needle threaders
• Upper thread breakage sensors
• Manual tension controls
• Automatic thread trimmer (upper and lower)
• Needle bar/frame move key extends the hoop for easy access to the design while still attached to the machine
• Oiling Key automatically places the race in the correct position for oiling
• Start/Stop button with lock feature
• On-screen speed control
• Uses pre-wound bobbins
• Choose units of measure (in. or mm.)
• Built-in stylus holder
• Support Features
• Built-in operation guide with videos
• Built-in help messages
• Auto save feature - automatically saves last design when power is turned off or a power failure occurs
• Shipping weight (130 lbs. or 59 kg.)
• Machine weight (94 lbs. or 42.5 kg)
• Warranty (25 years product casting, 5 years circuit boards, 5 years electrical, 2 year parts, 1 year labor)
• Ask your Baby Lock Retailer about The Optional Love of Sewing Membership (BMV10-LOSM)

Semi-Industrial Features

• 10 needles - 1 position for each needle
• Maximum embroidery speed -1,000 stitches per minute
• Maximum embroidery fill stitching speed -1,000 stitches per minute
• Embroiders up to 7-7/8" x 14" (200mm x 360mm) embroidery field or optional 14" x 14" (360mm x 360mm) frame using Palette Software
• LCD Maximum reading capacity:
  • 500,000 stitches, or 127 color changes

Technology Features

• Color LCD Touch Screen IPS (TFT)
  • Shows 16,777,216 colors
  • Measures 10.1” diagonally
• NeedleCam Digital Camera for perfect embroidery positioning
• NeedleCam Digital Camera for embroidery and sewing positioning with 5X faster scanning, 3X higher resolution
• Precise Touch Positioning using NeedleCam
• Live Camera Positioning
• Color Touch Screen shows:
  • Design placement using drag and drop capabilities
  • Estimated embroidery time display and stitch count
  • Embroidery progress bar
  • Needle advancement (1, 10, 100 or 1000 stitch increments)
  • Measurements displayed in inches or metrics
  • 200% Design magnification on screen
  • Color separation
  • Thread color indicator
  • On-screen hoop size indicator shows standard and optional hoops
  • Stitch simulator
  • Thread warning indicator
  • 300 color names
  • Screen saver customization
  • Customizable mouse pointer
• 2x faster CPU processing speed
• Mpeg-4 movie/video play function
• Exclusive Memory Storage for video
• Software/Connectivity - 3USB drives
  • 2 (Type A) drives, version 2.0 connects with flash drives, CD-Rom drives, mouse, and hub
  • 1 (Type B) USB direct connect to a PC
  • 1 SD card connection capability
• Linking capabilities allow up to 4 machines to connect to Palette 9 or later software through a powered hub
• Reads multiple formats (PES, PEC, DST, PHC)
• Upgradeable through USB connection

IQ Designer - Free Update 11/2016

• Image scanning frame with magnets
• On-screen drawing capabilities
• Automatically create an embroidery pattern from a JPEG image
• 90 Preloaded open, closed and region shapes
• Able to select different line colors and fill colors
• 6 Different stitch patterns: running, bean, satin, no outline, chain stitch, and candlewicking
• 13 Different fill patterns: regular fill, no fill, stipple, and 10 decorative pattern fills
• Duplicate and paste editing preloaded shapes
• Adjust line, fill and stippling width, length and density properties
• Undersewing options
• Outline stamp shape creation for Trapunto techniques
• 2 scanning modes
  • Fine- For illustrations
  • Standard -For line drawings

Optional Jumbo Frame

The optional 14" x 14" (360mm x 360mm) hoop is great for jumbo designs on projects such as quilt blocks or jacket backs (ENJF).

Love of Sewing Membership

The love of sewing membership will help you get the most out of our Baby Lock Valiant machine. Enjoy four years of unlimited access to sewing tutorials, comprehensive service and unique savings opportunities.

Palette Embroidery Software Command Center

Managing production has never been easier! The optional Palette Software (version 9 or higher) becomes the command center for your embroidery projects and provides the ability to link up to four Baby Lock multi-needle machines. Each machine linked through Palette (version 9 or higher) can embroider the same or different designs. Additionally, no command center is complete without a Koala Embroidery Studio.
