Janome MB-4Se Four-Needle Embroidery Machine

Home
Multi-Needle Embroidery Machines
Janome MB-4Se Four-Needle Embroidery Machine

Janome MB-4Se Four-Needle Embroidery Machine

Price:

$3,500.00

SKU:

j-mb4s

Brand:

Janome

Condition:

New

Weight:

0.00 LBS

Shipping:

Calculated at checkout

Product Description

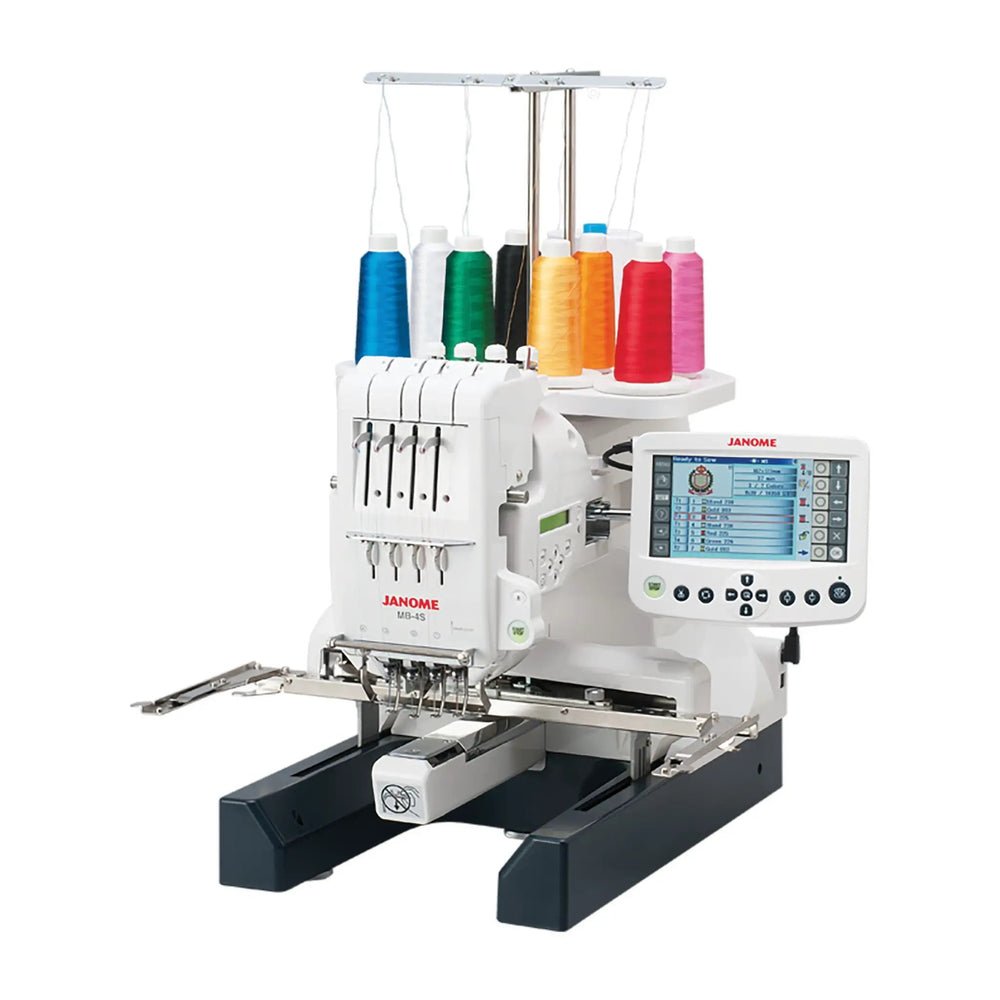

anome MB-4Se Four Needle Embroidery Machine

We've taken everything you love about Janome embroidery and quadrupled the capacity! With our four needle embroidery machine for hats, shirts, and more, you can set up your embroidery and move on to other projects while the MB-4Se gets it done.

The Janome MB-4Se embroidery machine for hats and shirts is built to work with most embroidery formats, including those used by industry professionals. It is compatible with six industry-standard Tajima hoops, as well as the four available Janome hoops as well as our Large Embroidery Hoop to further expand your creative opportunities.

Key Features

NEW! Extra large bobbin

Extra large bobbin is 1.4 times larger than a regular bobbin.

Remote Computer Screen (RCS)

The Remote Computer Screen (RCS) gives you total set-up and editing control with up to 65,536 colors. One RCS can power many machines, saving the cost of additional controllers.

LED Light

The LED Light offers precise lighting for outstanding results.

Automatic Thread Cutter

The MB-4Se automatically cuts jump threads - even between letters - saving you time and hassle.

Dedicated Bobbin Winding Motor

This feature - not found on professional machines - winds new bobbins even while the machine is stitching a design.

On Board Control

The MB-4Se includes an on-board sub-control device. You can use it without the controller! The MB-4Se also includes 3 MB of memory which can store up to 1,500,000 stitches or up to 100 designs.

Link Directly to PC

The on-board USB slave port connects directly to your PC with Digitizer MB software, sold separately.

Embroidery Hoops

Three included MB-4Se hoops snap in and out with ease. They provide the embroidery areas most often used in the industry. The MB-4Se is also fully compatible with industry-standard Tajima hoops.

Features

NEW Echo Stitch
Backlit LCD screen
Auto thread cutter
USB memory key compatible
ATA PC card port and USB port (Host) on RCS; USB port on MB-4Se
Compatible with Janome software
Embroidery speed up to 800spm
Built-in features:
- Built-in Designs: 50
- Fonts: 10
- Monogramming: 2 & 3 letter
- Expanded built-in memory
Extra large bobbin is 1.4 times larger than a regular bobbin
Change colors to favorite thread: Janome, Robison-Anton, Madeira, Mettler
Drag & Drop editing for easy placement
Embroidery design resize 80% - 120% by 1%
Rotate in 1 and 90 degree increments (clockwise / counter clockwise)
Flip vertically and horizontally
Standard hoops:
- M1: 9.46" x 7.88" (240mm x 200mm)
- M2: 5" x 4.3" (126mm x 110mm)
- M3: 50mm x 50mm
Embroidery area tracing
My SET screen controls for contrast, in/cm, designation and other customization
Zoom in and out
Multi-language selection
Stitch-out time indicator
Stitch Counter
Upper thread and presser foot sensors
Manual thread tension control
Ball bearing precision

Standard Accessories

Bobbins
Needle (DB x K5Q1-NY)
Needle Threader
Felt Ring (large)
Felt Ring (small)
Hoop M1 (240 x 200)
Hoop M2 (126 x 110)
Hoop M3 (50 x 50)
Hoop Supporter
Spool Caps
Spool Net
Spool Pin
Spool Rest
Spool Stand
Lint Brush
Thread Guide Bar
Thread Guide Pole
Tweezers
Seam Ripper
Scissors
Offset Screwdriver
Screwdriver (large)
Screwdriver (small)
Setscrew
Accessory Box
Oiler
Power Supply Cable
Instruction Book
Instructional CD-ROM

Limited Manufacturer's Warranty

Janome America, Inc. Limited 1 Year Warranty.

Specifications

Single head 4-needle embroidery machine for sale
Upper thread breakage sensor
Extra Large Bobbin - 1.4 times larger than a regular bobbin
Built-in auto thread cutter (needle & bobbin threads)
Thread cutter for bobbin winding
Needles
- Number of needles: 4
- Type of needles: DBxK5Q1NY #11
Speed
- Maximum speed: 800 spm
- Low range speed: Up to 400 spm
- Bobbin winding speed: 2,000 rpm
DB rotary hook (full rotary)
Machine control: By Remote Computer Screen (option) or Sub-Control Panel
Sub-Control Panel: LCD with backlight (H12 x W63mm)
Lay-in thread tension (manual adjustment)
Independent bobbin winding (with independent start button)
Upper thread holder spring on the face plate
Direct PC-Link
Embroidery format compatibility: jef+/jef (Janome) & DST (Tajima)
Control keys
- Mode key (*2)
- OK key
- 4 Jog-keys
- Forward / Reverse stitch keys
- Manual thread cutting key
- Start/Stop key (on Remote Computer Screen and Sub-Control Panel)
Resumption setting / My Set (with Remote Computer Screen)
3 Hoops
White LED x 2 sewing lamp
Spool stand (incl. 1 for bobbin thread & 4 additional spool)
Cylinder shape of bed
Skeleton (clam shell) body construction
DC motor
Machine size: W365 x H640/(440*) x D520 mm
Bed width: W299 x H130 mm
Machine weight: 20.5 kg
Packing size: W450 x H620 x D660 mm (*1)
Gross weight (incl. packing): 29 kgs (*1)
Machine Footprint Dimension and Weight: 11" x 16 3/4"; 45 lbs.

Downloads

MB-4Se Embroidery Designs Included in Machine

Download

Janome Embroidery Formats

Download

MB-4Se Machine Manual

Download

How to:

Selecting the built-in designs

1st: Select your hoop size

(M2 pictured)

There are 50 ready to sew embroidery designs categorized by hoop size.

To view the designs on the next page, press the next page key:

Next page key

Press the previous page key to go back to the previous page:

Previous page key

The designs on pages ¹⁄₇ to ²⁄₇ are those for the hoop M2 (MB Hoop 126 x 110)
The designs on pages ³⁄₇ to ⁶⁄₇ are those for the hoop M1 (MB Hoop 240 x 200)
The designs on page ⁷⁄₇ are those for the hoop M3 (MB Hoop 50 x 50).

Click the image to see a more detailed view, or download the PDF in the link below.

Download

Selecting the built-in designs PDF

Download

Optional Embroidery Software Addons

Choose Your Embroidery Software Addons in the Dropdown Menu Before Checkout

Janome Artistic Digitizer Software

Be the designer, the gift giver or the award winner; with Janome Artistic Digitizer. Create and embellish any project easily with this robust embroidery, sewing and crafting software. Achieve professional quality results quickly and easily, without needing to be an expert. Everything you need is in this powerful and comprehensive package. You can create original designs, add personal touches, choose from a plentiful selection of digitizing options, advanced editing features, crystal work, quilting motifs and more. With this software you have the freedom to take your creative expression in any direction you can imagine. Artistic Digitizer gives you the freedom to be anything.

Artistic digitizer is even more. It includes tools for creating cutting, painting and quilting designs. In addition, you can create stencil and designs with crystals/rhinestones. One software for all crafting creations.

Brief Comparison Chart

Category	Artistic Digitizer	Artisitic Digitizer Junior
Export to Quilt	Yes	No
Predigitized Fonts	256	21
Auto border	Yes	No
Trim	Yes	No
Name drop	Yes	No
Circular array	Yes	No
Export to Cutters	Yes	No
Import Bitmap as Cross stitch	Yes	No
Import Bitmap as Photo stitch	Yes	No

*Check out a more in depth comparison chart in the pdf below.

Comparison Chart

Add-on Durkee EZ Frame Combos for Multi-Needle Embroidery Machines

Click to Enlarge

Introducing Durkee "EZ Frames" for multi-needle Embroidery machines. EZ Frames are a simple, yet effective, system for hooping otherwise difficult to hoop items. Simply apply sticky backing to the underside of the frame with the sticky side up. The adhesive on the backing holds your project in place while the machine is stitching.

Seven (7) Piece Combo Pack Includes:

Main Attachment Arm
2" x 4"
2.5" x 4"
3" x 4"
5" x 4"
7" x 5"
8" x 8"
Cap Back/Radius Frame

More Combos:

Package A

Cap Frame

Hoops: 12cm, 18cm, 24 x 24cm

EZ Frames: Adaptor Arm, 2” x 4”, 5” x 4”, 7” x 5”, 8” x 8”

Package B

Cap Frame

Hoops: 12cm, 12.5 x 24cm, 15cm, 18cm, 24 x 24cm

EZ Frames: Adaptor Arm, 1 ½” x 4”, 2 ½” x 4”, 3” x 4”, 3” x 8”, 5” x 4”, 5” x 8”, 7” x 5”, 8” x 8”, Radius Frame

Package C

Cap Frames

Hoops: 9cm, 12cm, 12.5 x 24cm, 15cm, 15 x 15cm 18cm, 24 x 24cm

EZ Frames: Adaptor Arm, 1 ½” x 4”, 2” x 4”, 2 ½” x 4”, 3” x 4”, 3” x 8”, 4” x 4”, 5” x 4”, 5” x 5”, 5” x 8”, 6” x 6”, 7” x 5”, 7” x 7”, 8” x 8”, Radius Frame
