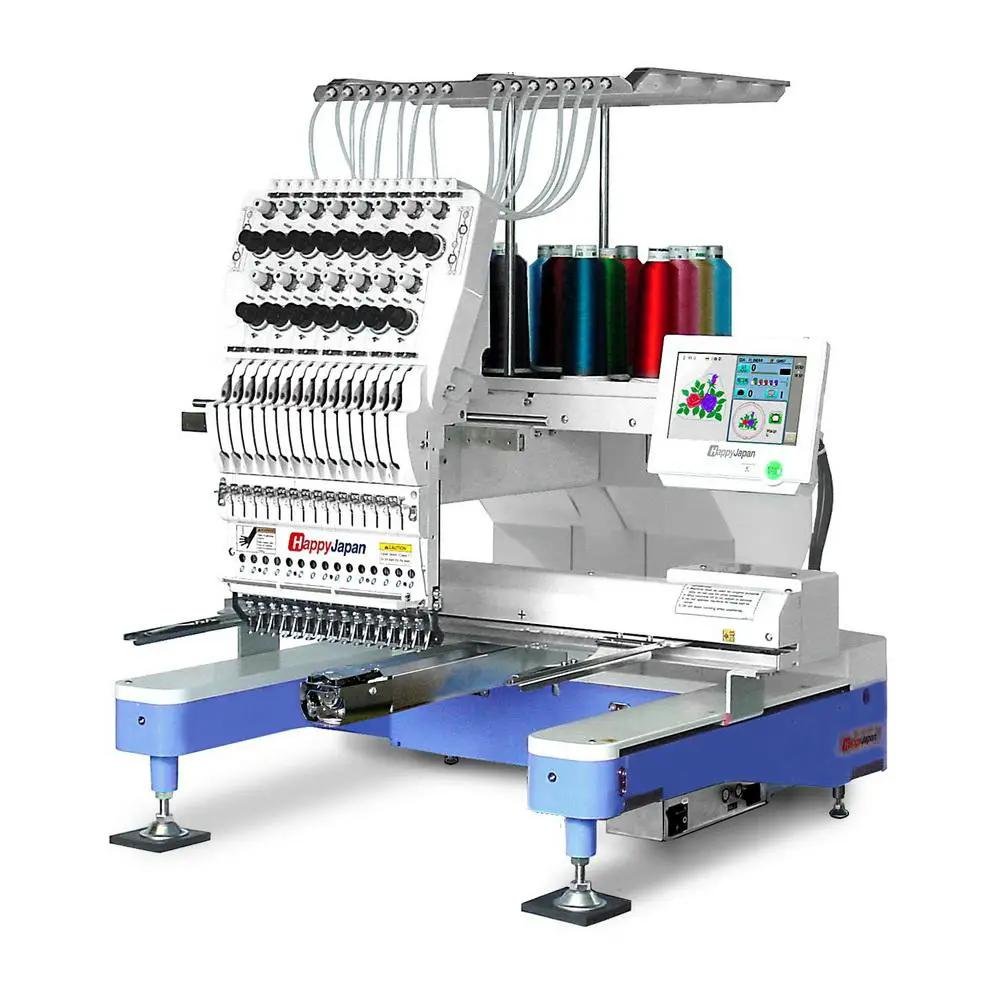

HCD3e EMBROIDERY MACHINE

The 15-needle HCD3e is Happy Japan’s best-selling, full-size commercial single-head embroidery machine, with a very large sewing field (max 20.5″w x 15.74″h) With a very high max operating speed (1200spm) heavy-duty drive system, and slimmer-profile sewing arm, this machine is able to handle anything from delicate projects to heavy items, while operating continuously through year-round production.

• Color LCD touchscreen panel
• Customizable front screen apps
• USB/LAN ports for direct PC connection
• Built-in help, auto-error correction
• Combine designs & text directly onscreen
• Built-in lettering & stock designs
• Onboard editing: rotate, scalle, mirror, satin pull compensation, stitch cleanup, lockstitching
• Import any compatible 3rd-party hoop onscreen for accurate positioning
• Load, set up additional designs while machine is running

Repositionable Arms

The repositionable arms allows the machine to accommodate a wide variety of hoops. The very large 17.25” x 16.5” hoops are included with the machine.

Easy Maintenance

With some of the simplest, lightest maintenance requirements in the industry, HCD3e minimizes downtime and maximizes production time. Coupled with auto error correction and onboard help, the HCD3e easily becomes the most popular machine in the embroidery shop.

Easy Touchscreen Control Panel

Acknowledged to be one of the easiest to learn and operate, HappyJapan’s touchscreen interface requires very few button presses to accomplish most tasks. Common, everyday tasks, like loading and setting up designs, are accessed directly on the front screen without any menu-diving. Built-in help and auto-error correction help minimize downtime and maximize productivity.

• Sewing Field: 20.5" wide x 15.75" high on flat goods, 14.1" wide x 3.1" high on finished ballcaps
• Operating Speed: 1200 stitches/min on flats, 1000 stitches/min on finished ballcaps
• Memory: 100 million stitches/3000 designs, 100 built-in stock designs
• Onboard Lettering: 12 fonts ranging from 2" tall to 1/4" tall
• Dimensions: 33.3"w x 30.6"d x 29.3"h
• Power requirements: Single phase 100-115v, 250w, 60hz
• Weight: 106kg/233 lbs

Included Accessories

• Hoops: 2ea. of the of the following: 4.7" round, 5.9" round, 12.5" square, 17.25" x 16.5" rectangular, wide-field cap hoop
• Cap sewing kit includes 2x wide-field cap hoops, cap stretcher (hooping station), cap driver
• Software: HappyLink, HappyLAN connection software
• Operator's toolkit
• Manuals: Operator's and Parts manuals (in PDF form)

Downloads

Empty heading

Brochure

Empty heading

Manual

Add Optional Happy HCS Stand

Designed to stabilize the Happy HCS, HCH and HCD Embroidery Machines, this stand is a sturdy and durable essential for your operation. It has four lockable wheels to allow you to move your machine into the perfect place, and for cleaning up.

• Dimensions: 34-inch wide x 28.25-inch deep - height is adjustable from 31-inches to 32 inches.
• Shelf under the table can be adjusted to 1/2-inch to 6-inches beneath table surface.
• Lockable wheels keep stand in place.
