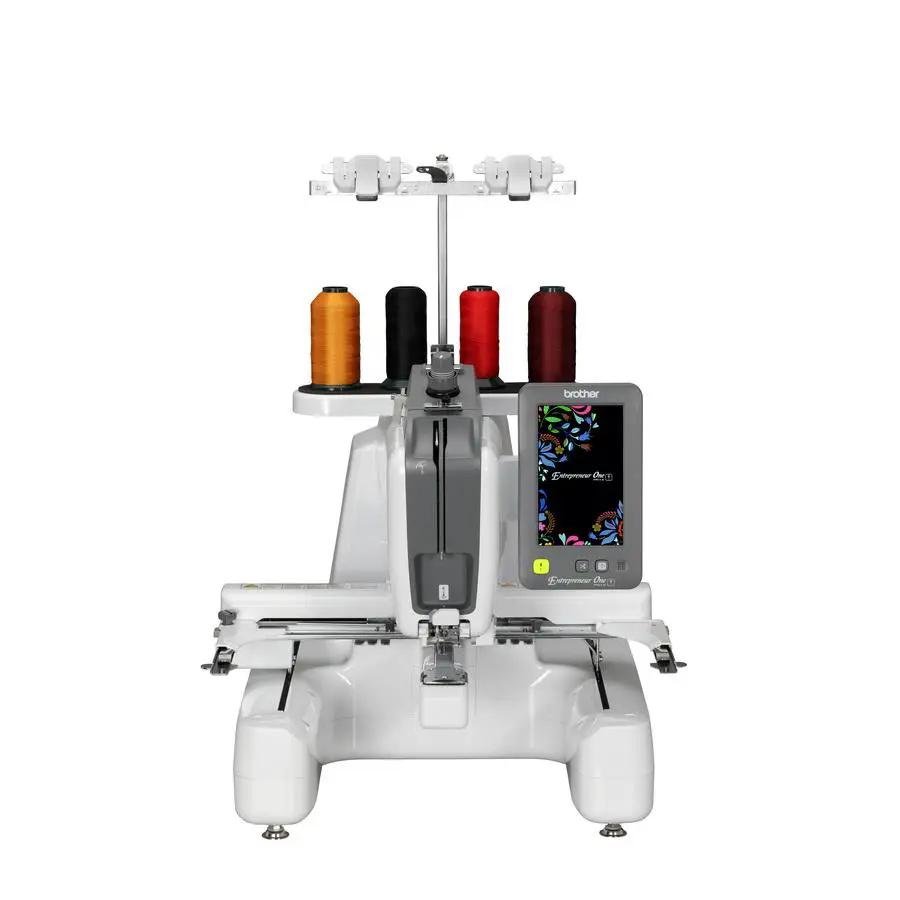

Plus sewing machine

Precision Laser

With the Crosshair 2-Point Positioning Laser, you’ll be able to see where the needle will drop every time.

Built-in Embroidery Designs

There’s no shortage of inspiration with the 495 built-in embroidery designs, ranging from wildlife motifs to traditional appliqués.

iBroidery Compatibility

With over 5,000 unique designs on the Brother-exclusive iBroidery.com, creativity is just a click away.

Funky Fonts

The fun and imaginative collection of built-in fonts includes 25 regular-sized fonts, 4 small fonts, 1 super small font, 2 Cyrillic fonts, and 1 super cool 3D font.

LED Lighting

See the crisp colors of your designs and eliminate shadows with the customizable LED light.

Online Tutorials

Expand your skillset with online tutorials and videos that are just a QR code click away!

Bobbin Features

The vertical bobbin allows for easy bobbin changes without removing your hoop. The Side Bobbin winder allows you to wind a new bobbin while the machine is embroidering.

LCD Display

With bright vivid colors, large icons, and on-screen editing, crafting is more advanced and enjoyable than ever before.

Single Needle Flexibility

With free-arm embroidery capabilities, it’s easier than ever to add your personal touch to caps, sleeves, and bags.

Spacious Work Area

The large 8"x 12" embroidery area allows for large projects to fit and be customized to your liking.

Basic Features

• Weight: 68.34 lbs
• Dimensions: 23.1" L x 19.92" W x 22.24" H
• LCD Display Size (Horizontal x Vertical) Inches: 3.6 x 6.0
• Display (Number of Colors): 260,000
• Opening Screen: Yes
• Stitch Select: Touch Screen
• On-Screen Help: Yes
• Built-in Languages: Yes
• On-Screen Editing: Yes
• Lighting: 4 LED Lights
• Adjustable Screen Brightness Settings: Yes
• Thread Tension: Manual
• Needle Threading System: Advanced – Multi-Needle Style
• Easy Bobbin Winding: On Side of Machine
• Adjustable Bobbin Winding Speed: Yes
• Thread Sensor: Yes
• Thread Sensor On / Off: Upper and Bobbin
• Automatic Thread Cutter: Yes
• Vertical Bobbin: Yes
• Full USB: 1
• Computer Connectivity with Update Capability: Yes
• Media Type: Several Media via USB

Embroidery Features

• Maximum Embroidery Area (X x Y): 8" x 12"
• Maximum Embroidery Speed (Stitches Per Minute): 1,000 spm
• Standard Included Frames: 2 (12" x 8” and 4" x 4”)
• Built-in Brother Embroidery Designs: 495
• Built-in Embroidery Lettering Fonts: 33
• Built-in Alphabet Designs: 8
• Built-in Frame Designs: 10 Shapes x 14 Stitch Patterns
• Built-in Border Function and Designs: Yes
• Thread Wiper: Yes
• Resume Function: Yes
• Trial Position / Layout Function: Yes
• Curving Text on Screen Editing: Yes
• Multiple-line Text Input and Alignment (Left, Center and Right): Yes
• Color Ordering: Yes
• Pattern Rotating: 1, 10, or 90 Degrees
• Drag and Drop Editing: Yes
• Zoom Function: Zoom to View Many Designs up to 200% Actual Size
• Preview Designs Before Stitching: Yes
• Programmable Monochrome Embroidery: Yes
• Basting Stitch Before Embroidery: Yes
• Stitch Forward / Backward: 1, 10, 100, 500 Stitches
• Crosshair 2-Point Positioning Laser: Yes
• Cap Frame Capability: Yes
